LB06 Hart Current Voltage 4-20mA 0-10V/mV Signal Generator Source thermocouple PT100 Temperature Process calibrator Tester

● Fast response, no delay in signal source simulation and signal testing or measurement. ● Have battery capacity bar to check the battery status easily. ● Precision AD, DA, reference voltage, OP circuits are used to ensure high accuracy, high performance and high stability. ● Have 4 units of PPTC and a quick-break fuse to protect the instrument from damaged by high voltage. Packing contents: 1 Unit x Original BRT LB06 Portable Precision Process Calibrator 1 Set x High safety standards testing Pen Probe 1 Unit x High quality 2A USB Cable for Battery Re-charge 1 Unit x High quality meter bag 1 Set x Professional Brightwin Easy-to-understand User Manual

• ● High Precision 0.025%+1/2 digits, high reliability & stability in signal simulation and measurement.

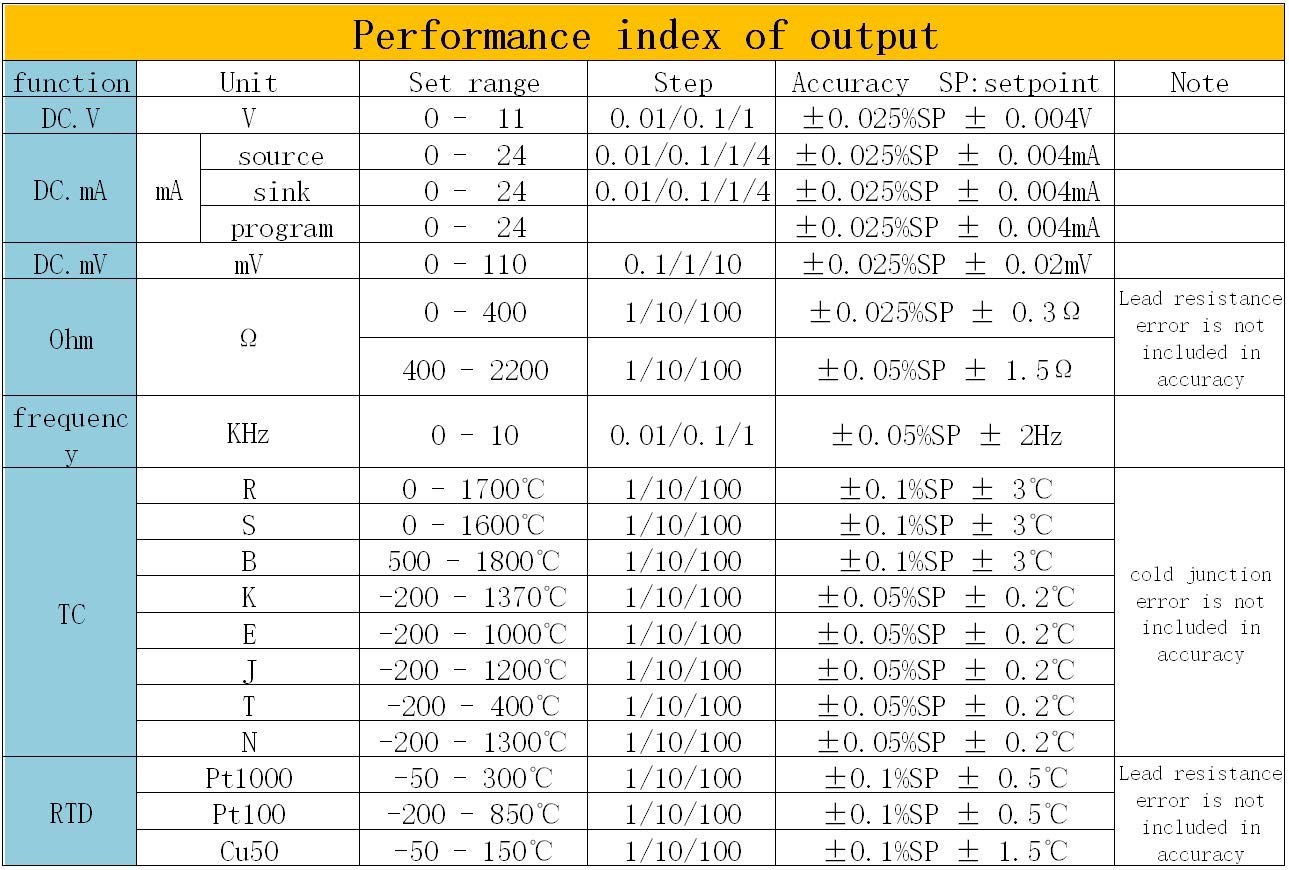

• ● Output simulation: 0/4-20mA source/passive, 0-11V, 0-110mV, 20-400Ω, R, E, S, K, J, B, T, N type thermocouple, PT1000, PT100, CU50, 24V outputs, frequency, etc.
• ● Measurement: 0-30V, 0-150mV, 0-999.9Ω, R, E, S, K, J, B, T, N type thermocouple, PT100, Pt1000 CU50, 24V, 0-24mA, Ohm, frequency, etc.
• ● Have standard MODBUS Master, MODBUS Slave, Hart communicator/operator function.
• ● High resolution LCD display, have back light for different lighting conditions, large screen clear display.
